Description

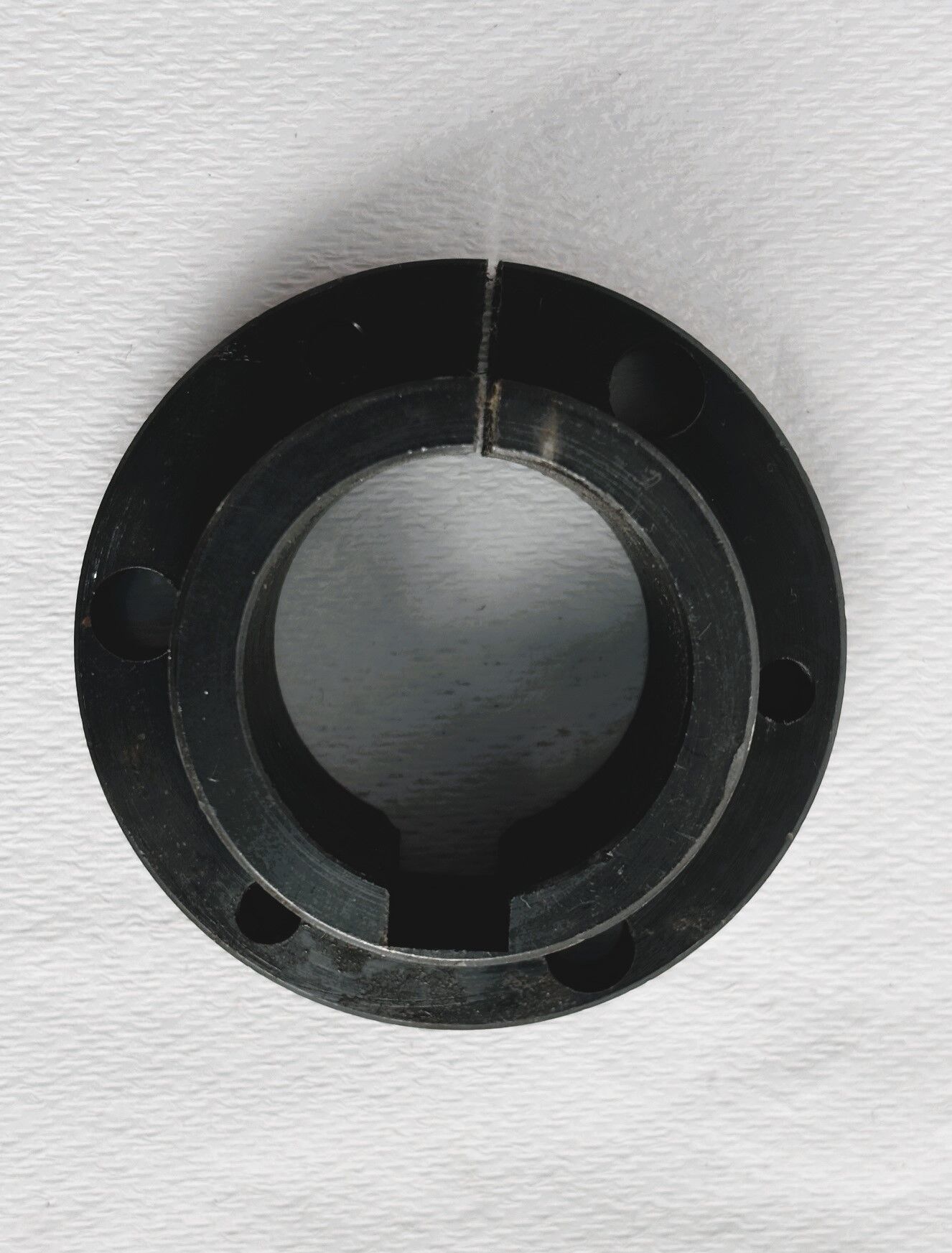

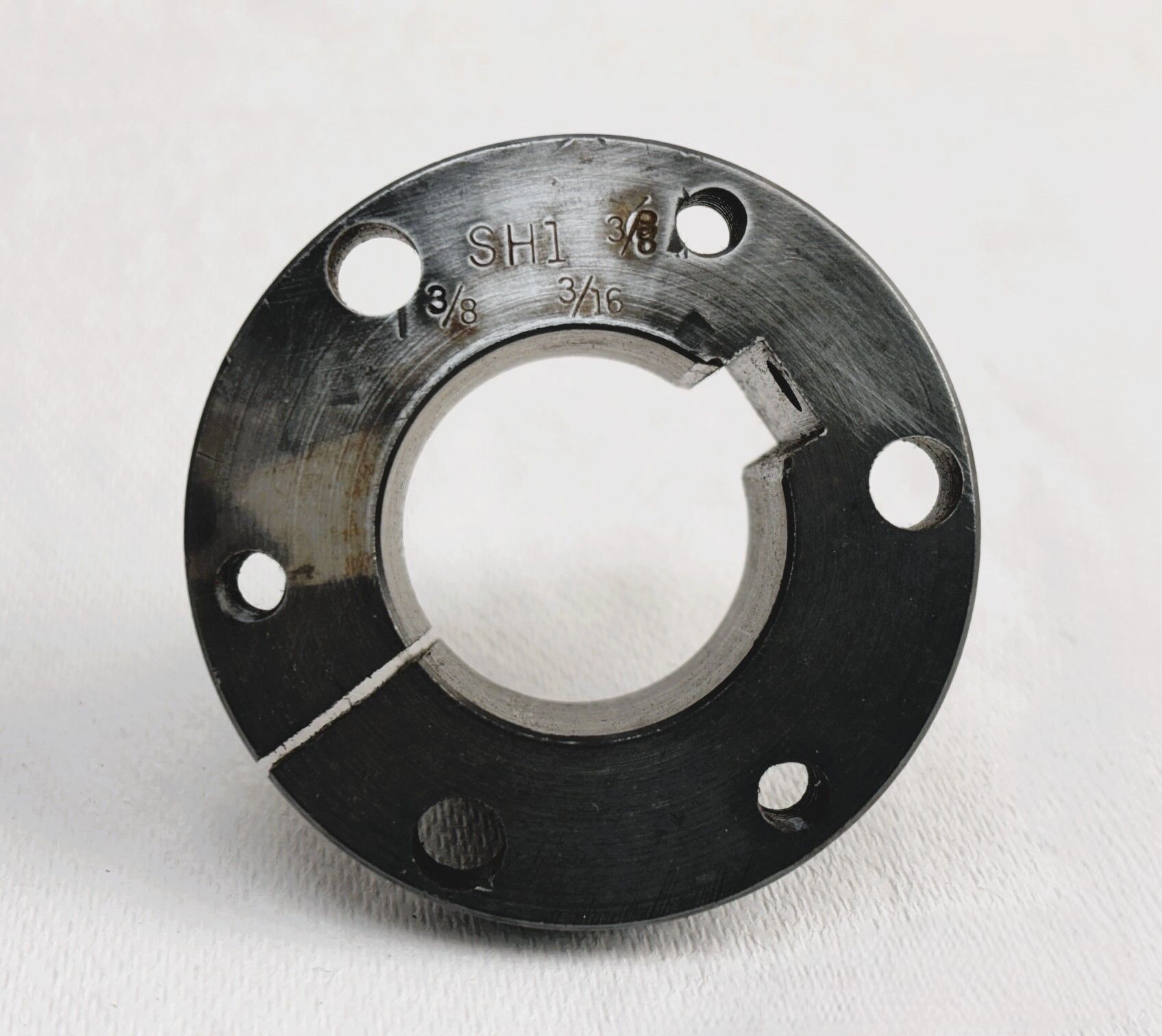

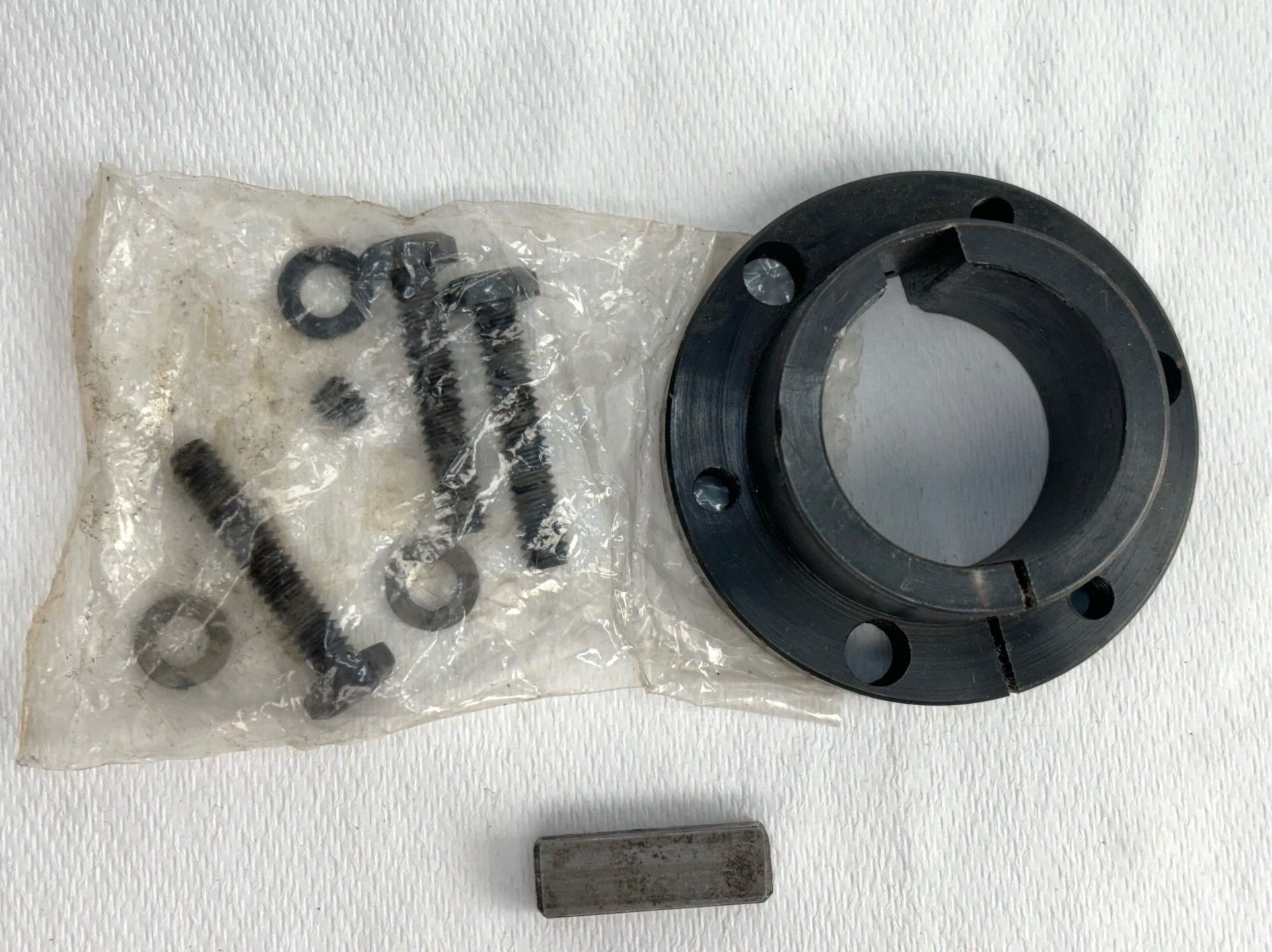

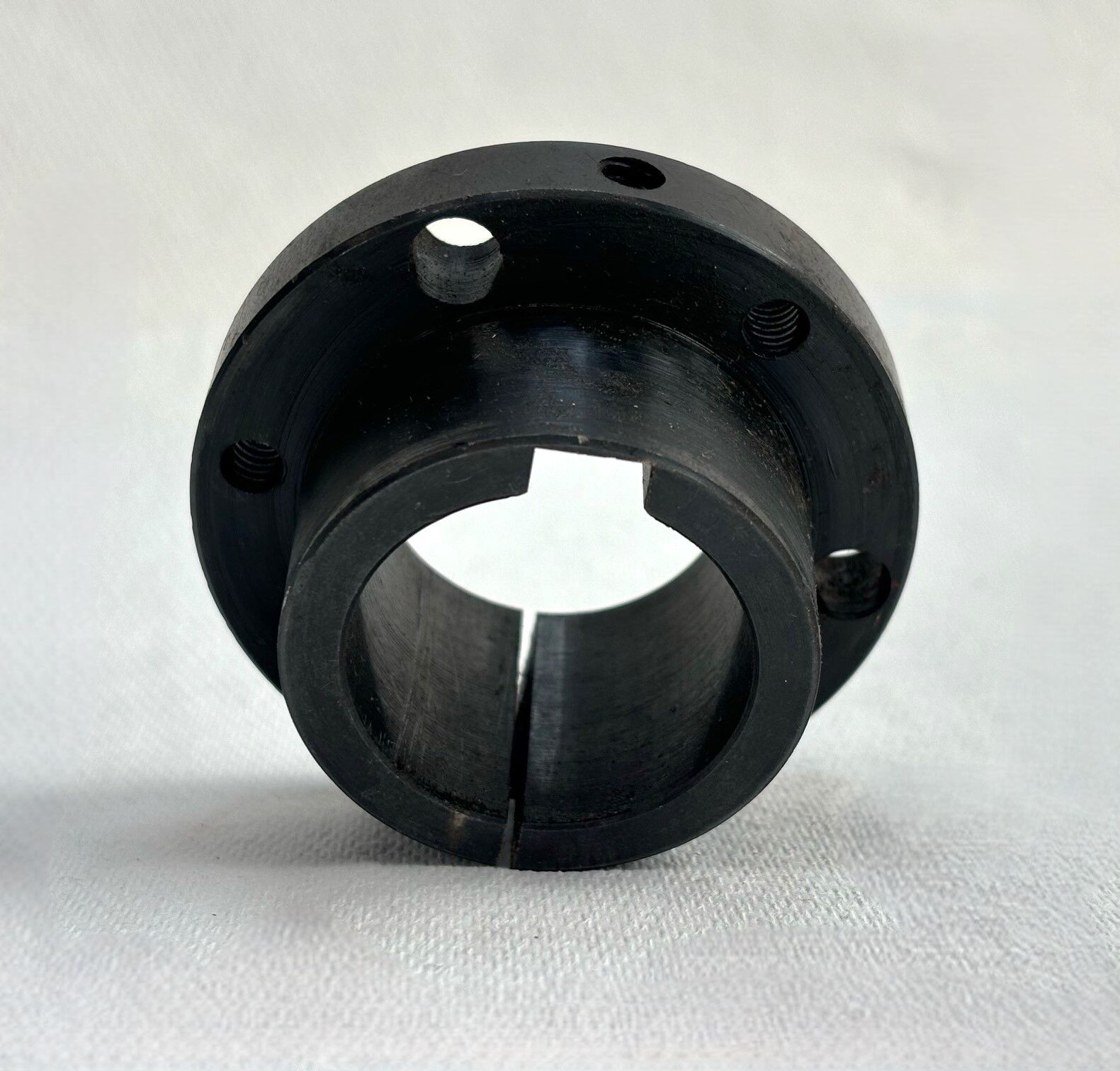

PN#SH  SKU#23320  Bushing, SH Series, 1.375 in Bore Size. Bushing Series SH. E (Knuckle Width): 0.875 in. Keyway Size: 3/8 X 5/32 in. Material: Ductile Iron, Cast Iron. G Dim: 3/16 in. Torque Capacity: 3500 lb/in. Overall Length: 1 7/32 in. Bore Range [Max]: 1 5/8 in. D: 2.688 in. Wrench Torque: 9 lbf. Large Diameter: 1.871 in. B: 1.871 in. Bore Size: 1.375 in – 1 3/8 in. Length Through Bore: 1 5/16 in. Capscrew Size: 1/4-20 UNC x 1 3/8. Cap Screws: 3. F: 0.813 in. Bolt Circle Dia.: 2 1/4 in. Bore Range [Min]: 1/2 in. Flange Thickness: 7/16 in. Set Screw: 1/4 in. L Dim: 1.313 in.
